Welcome to Yingtai Aluminum Factory to purchase the Slim 120 Integrated Window System with low price and high quality. It can minimize visual obstruction to the greatest extent, provide a nearly frameless wide field of view, and seamlessly connect with indoor and outdoor Spaces. Welcome both new and old customers to come and purchase.
As a professional manufacturer, Yingtai Aluminum produces the Slim 120 Integrated Window System, which achieves a high degree of integration of aesthetics, performance and functionality. It can bring the ultimate sense of transparency to buildings, excellent thermal insulation performance and reduce the long-term operation and maintenance costs of buildings. If new or old customers are interested in our products, please send an inquiry.
|
Brand Name |
Yingtai |
|
Product name |
Slim Frame Vent Window with Integrated Screen |
|
Material |
Aluminum Alloy |
|
Grade and Temper |
6063 (T3-T8) |
|
Application |
Residential: Luxury villas, apartments, eco-homes |
|
Commercial: Hotels, offices, hospitals, schools |
|
|
Industrial: Factories, warehouses with high ventilation needs |
|
|
Max Wind Resistance |
3,500 Pa (Class C5) |
|
Water Tightness |
600 Pa (Grade 8B) |
|
Sound Insulation |
42 dB reduction |
|
Fire Rating |
EI60 (1-hour integrity) |
|
Glass |
5mm + 18A + 5mm,5mm + 27A + 5mm,12mm+15A+12mm; Double glass/ Tempered glass/ Low-e glass/ Laminated glass/ Bullet proof glass |
|
ANTI-FALL ROPE |
Standard Aluminum Anti -fall Rope (Bear weight 150KG ) |
|
Available Size |
Opening Panel (W:400-750,Ht：400-1500)Each Fixed panel ≤6㎡ |
|
Surface Treatment |
Powder Coating, Anodizing; Wooden Grain, PVDF Coating |

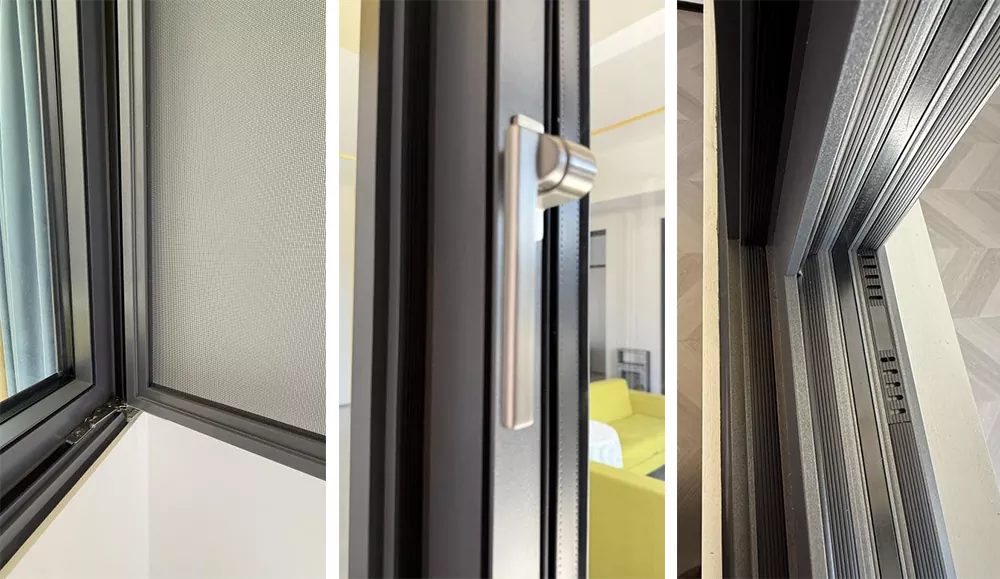

The Slim Frame Casement Window with Integrated Screen, made of PA66 nylon strips of primary aluminum with a wall thickness of 3.0, can provide stability and rigidity for the window and has excellent heat insulation and sound insulation effects. Built-in dual-wheel retractable screen. The daily use that brings convenience to life is highly transparent, and the dust-free net ensures that your viewpoints remain perfect and clear. The unique angular sealing design permanently eliminates water leakage at the key secondary frame interface.

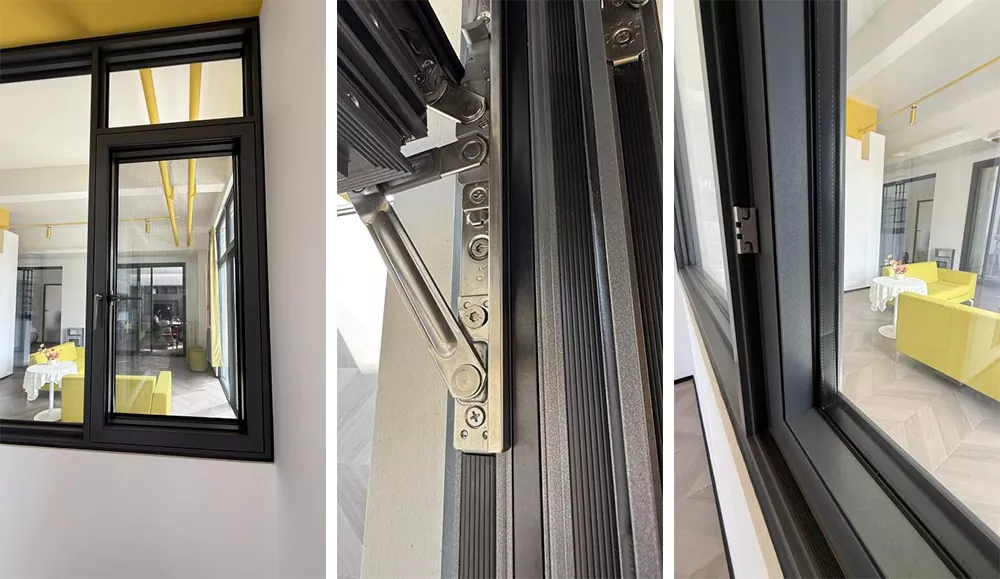

1. Hidden hinges and embedded handles maximize the area for free ventilation and lighting.
2. Paired with ultra-thin and beaded glass beads, the project is smooth, minimalist and features a complex aesthetic.
3. The selection of glass can be divided into 12mm glass + 15mm argon gap + 12mm glass. You can choose according to your needs.
4. The visible frame depth is generally 25mm, which reflects a high-end, ultra-thin profile and presents a distinct modern appearance.

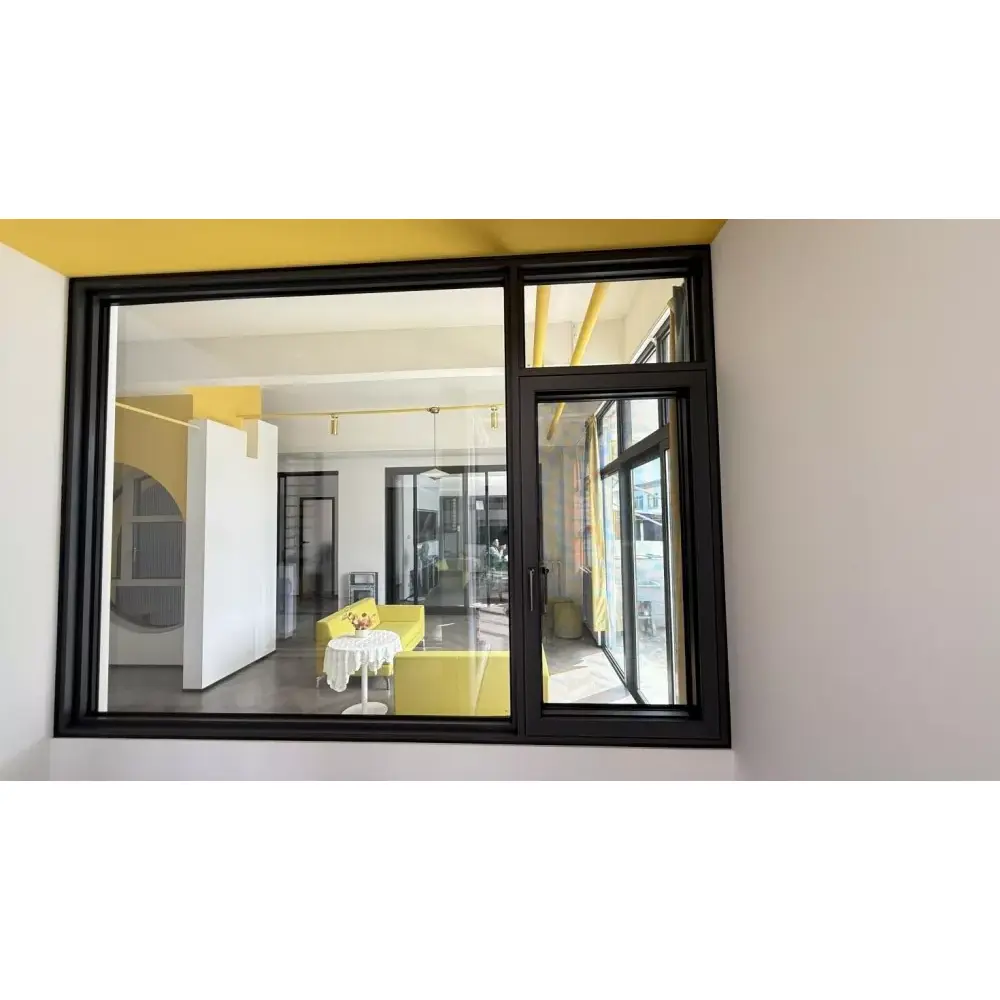

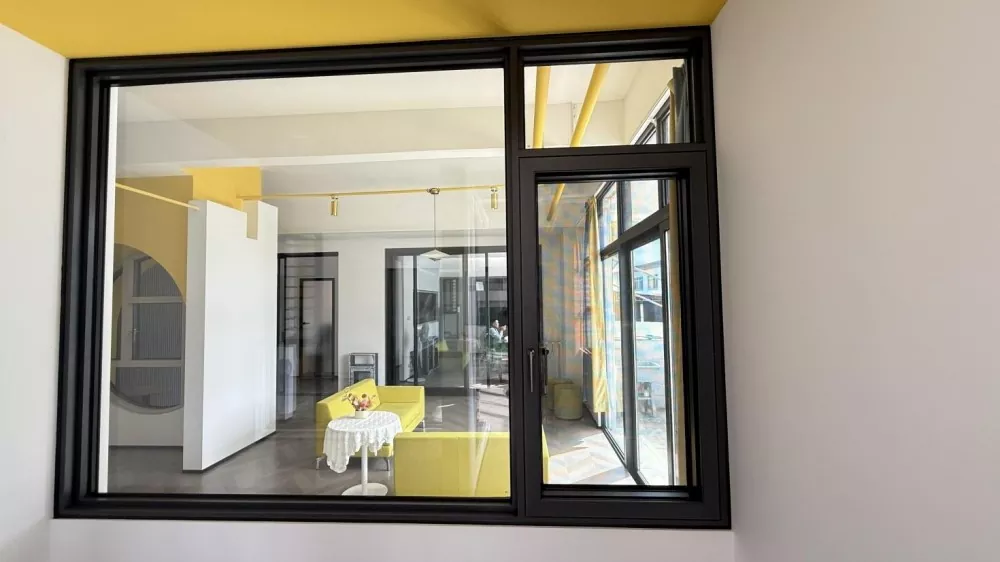

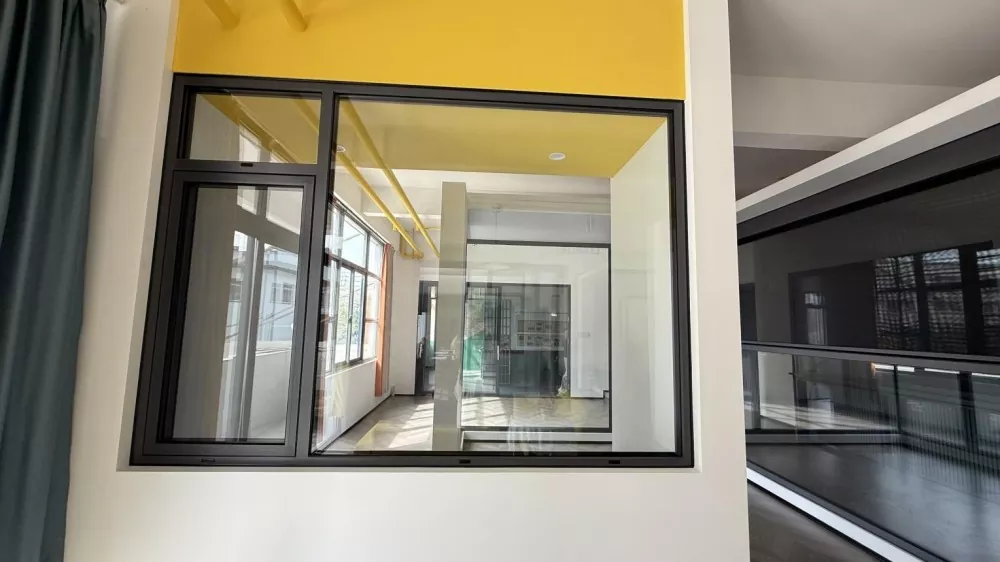

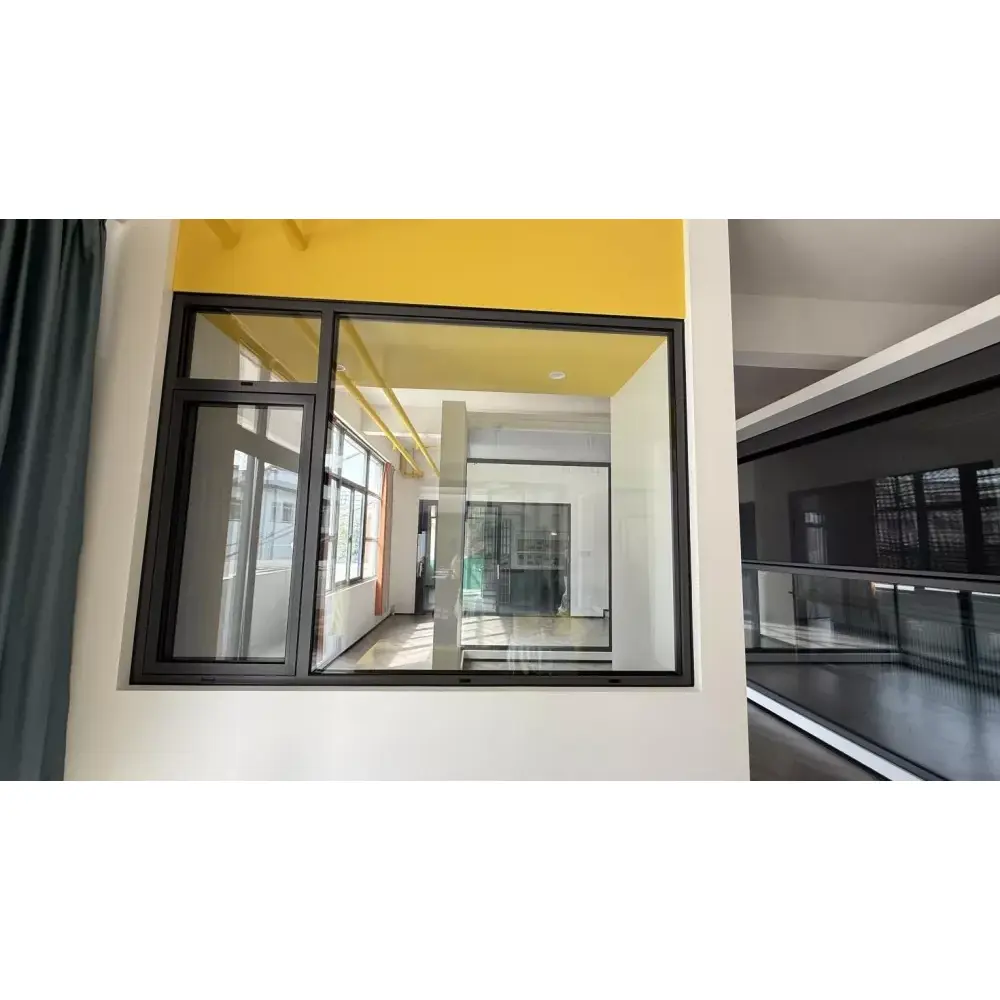

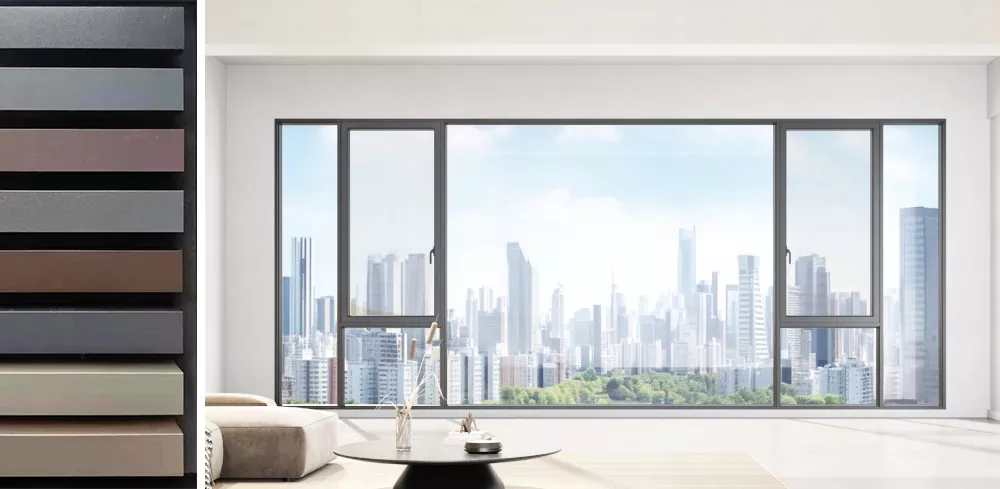

Slim aluminum casement windows, with its ultra-narrow frame and huge fixed glass panel, combined with the upper handle and hidden fan design, ensures maximum ventilation and view when opened, creating a spacious and well-ventilated living space.

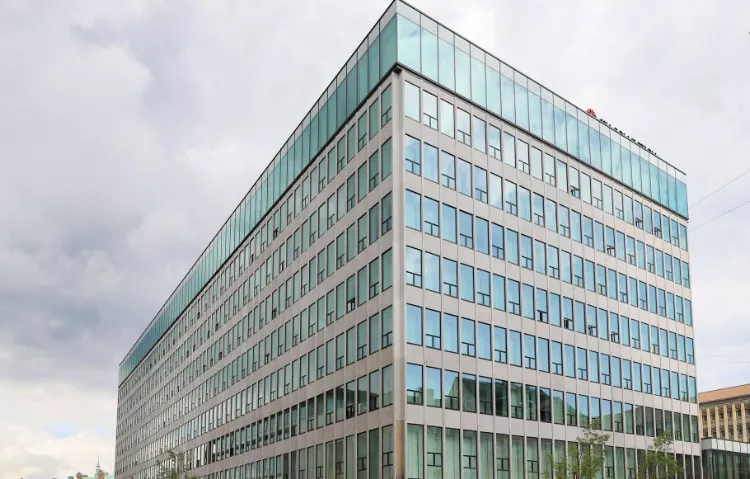

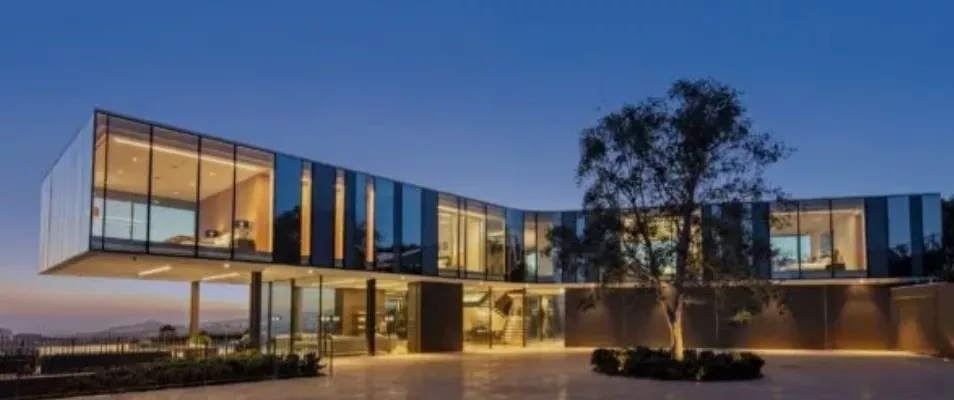

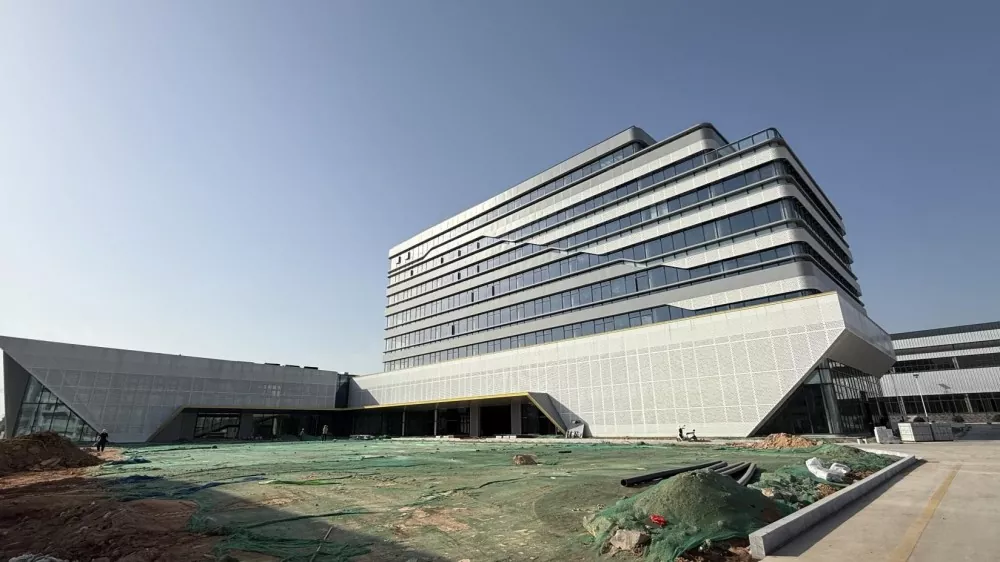

Slim window system has become the top level in the development of the door and window industry by installing this system. It is the product of the perfect combination of technology, art and architecture that gathers the team. Often, in high-end residences and villas, corporate headquarters office buildings, luxury hotels and other commercial landmark buildings, as well as art galleries, libraries and other cultural public buildings, it serves as the purest facade and the most transparent view, providing the best lighting environment for artworks. With its thermal insulation and heat preservation performance, it has become one of the key technologies for achieving the standards of passive houses and near-zero energy buildings.
