YINGTAI Thermal Break Aluminum Casement Windows P115 with 6060-T66 thick frames & anti-salt-spray Xingsanxing hardware. Multi-cavity PA66 thermal strip for energy saving & sound insulation. Factory direct supply for Florida, Caribbean and Southeast Asia coastal projects.
Thermal Break Aluminum Casement Window SystemTop Coastal Hurricane Aluminum Windows | Designed to Stop Water LeakageMost ordinary aluminum windows look similar, but they fail badly during storms and typhoons.
If you need durable thermal break aluminum casement windows for beach houses, oceanfront apartments or hurricane-prone tropical areas, YINGTAI P115 system windows are your ideal choice. We developed this leak-proof aluminum window system specially for coastal, high-wind and heavy rain regions.
With patented active waterproof structure (Patent No. ZL20252053913.3) and heavy-duty 6060-T66 aluminum frames, our hurricane-proof aluminum windows drain rainwater actively instead of just blocking it.
Perfect for projects in Florida, Gulf Coast, Caribbean, Southeast Asia and other humid windy areas, delivering stable long-term weather resistance for residential and commercial buildings.
Ordinary aluminum windows only rely on simple rubber strips to block water passively. Our exclusive 4+1 active sealing system solves leakage fundamentally:
· 4 main sealing strips around sash and frame to block daily rain
· Extra sub-frame anti-backflow strip to stop rain pushed inward by typhoon winds
· Patented 45° angled seal for fast drainage and wind-driven rain resistance
Even under typhoon-level heavy rain and strong wind pressure, this waterproof aluminum window system keeps water outside with zero leakage complaints.
Thin aluminum frames bend in strong winds, creating gaps that cause water leaks. All P115 thermal break aluminum windows use aerospace-grade 6060-T66 aluminum:
· 2.0mm / 3.0mm thick frames, far thicker than the industry standard 1.4mm
· Webster hardness 12, strong enough for large panoramic glass
· Passed high wind load tests for coastal typhoon zones
The thick frame won’t warp or sag even with oversized impact glass, ideal aluminum windows for high-rise buildings.

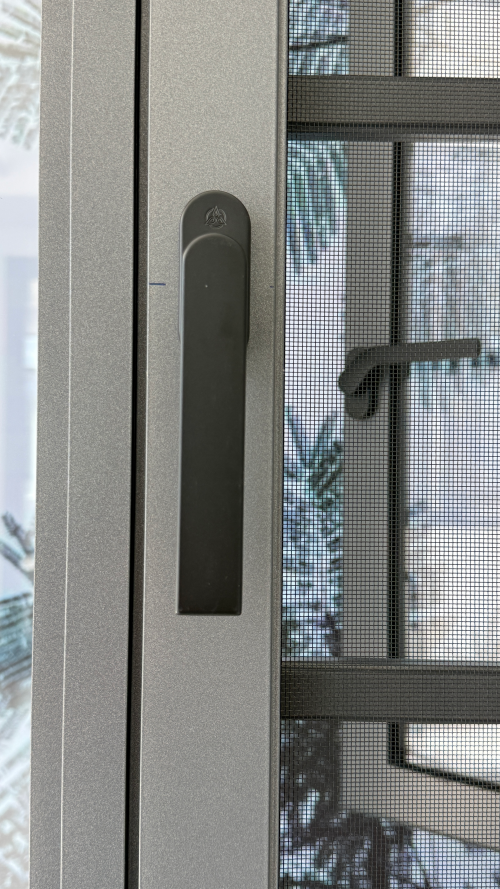

Cheap hardware rusts and sticks within 2-3 years in salty coastal air. We equip all coastal aluminum casement windows with Xingsanxing Key-point marine-grade hardware:
· Excellent salt spray corrosion resistance for long seaside service life
· Smooth quiet operation for years of frequent use
· Widely tested in coastal villas and seaside resorts
Property owners do not need to replace hardware frequently, greatly cutting after-sales costs.

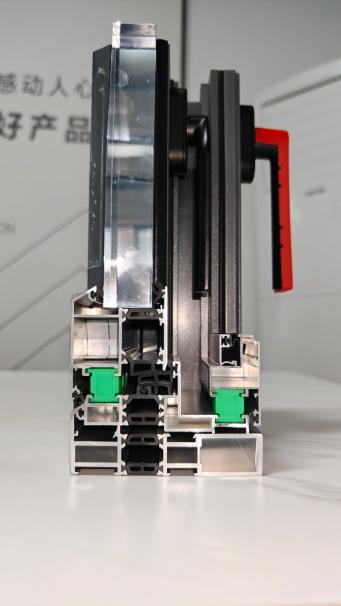

A good thermal break aluminum window insulates heat and noise besides stopping rain. P115 energy efficient aluminum windows adopt Ronghai multi-cavity PA66 nylon thermal strips:
· Better heat insulation than single-cavity strips, cool in summer and warm in winter
· Great sound insulation for houses near roads or airports Optional 12G+15A+12G double glazed glass further improves thermal and acoustic performance.
· Closed pressure strip design for seamless clean facade lines
· Integrated sash without exposed strips, wider sightlines and less water accumulation
· 10-year weather-resistant Jia Duocai powder coating, standard colors: Fluorocarbon Grey, Sand Coffee
Suitable for high-end villas, hotels and resorts with commercial-grade system window performance.
Every P115 thermal break casement window comes with an integrated child safety lock. It allows partial ventilation while preventing children from fully opening the window. Contractors don’t need extra separate safety fittings for high-rise residential projects.
| Parameter | Details |
| System Name | P115 Thermal Break Casement Window System |
| Profile Material | 6060-T66 Aluminum Alloy |
| Wall Thickness | 2.0mm / 3.0mm Heavy Duty Aluminum Frames |
| Thermal Strip | Multi-cavity PA66 Nylon (Ronghai Brand, energy efficient thermal break) |
| Sealing System | Patented 4+1 Active Waterproof Sealing System |
| Hardware Brand | Key-point by Xingsanxing (Coastal salt spray resistant grade) |
| Glass Option | Up to 12G+15A+12G Double Glazed Insulated Glass |
| Surface Finish | 10-Year Weather Resistant Powder Coating |
| Standard Colors | Fluorocarbon Grey, Sand Coffee (Custom RAL color available for bulk aluminum window orders) |
| Safety Feature | Built-in Child Safety Lock for high-rise aluminum windows |
| Corner Joint | Full Glue Injection Process to stop frame water leakage |
| Patent Number | ZL20252053913.3 |
1. Coastal residential projects: beach houses, oceanfront condos, seaside villas
2. Hurricane zone construction: Florida, Gulf Coast, Caribbean resorts, Southeast Asia tropical towns
3. High-rise buildings with strict wind load and safety standards
4. Humid tropical buildings requiring fully waterproof aluminum windows
5. Luxury residential developments balancing appearance and performance
6. Hotels & resorts needing durable minimalist commercial aluminum windows
Q1: What makes P115 aluminum casement windows better for coastal houses?
A: Three core strengths: rigid thick 6060-T66 frames against wind deformation, patented 4+1 active sealing to drain rain actively, and anti-salt-spray coastal hardware. Common windows only solve one seaside problem, while P115 stops leakage, deformation and rust all at once.
Q2: Can these hurricane aluminum windows meet Florida & Miami-Dade impact standards?
A: The P115 frame supports impact-rated glass. We supply windows to global hurricane zones and provide full technical documents for local code approval. Contact our engineering team for project certification support.
Q3: What is the lead time for custom bulk aluminum window orders?
A: Standard models ship in 25–30 days. Custom colors and large hotel/resort orders take 35–45 days. We offer DDP shipping to major North American and European ports for wholesale buyers.
Q4: Can you provide NFRC certified energy efficient aluminum windows for the US market?
A: Yes, we supply NFRC-rated P115 configurations for North American projects. Send your project requirements, and we will prepare full specification and certification files.
Q5: Can I customize RAL colors for aluminum window orders?
A: Yes. Standard stock colors are Fluorocarbon Grey and Sand Coffee. Custom RAL coating is available for orders meeting MOQ, with standard 10-year weather-resistant finish.
Q6: Are thick frame P115 aluminum windows suitable for high-rise buildings?
A: Absolutely. 3.0mm thick 6060-T66 frames withstand extreme high-floor wind loads. Matched with the child safety lock, P115 fits multi-story and high-rise apartments perfectly.
Looking for reliable wholesale thermal break aluminum windows for coastal, hurricane or high-rise projects? Send us your window sizes, order quantity, project location and certification demands, and we will offer a detailed quotation for YINGTAI Thermal Break Aluminum Casement Windows P115 within 24 hours.
YINGTAI Technology Co., Ltd. — China factory direct supplier of durable hurricane-resistant waterproof aluminum window systems for global residential and commercial construction.
