Metal Roof Solar Mounting System

Product Overview

Yingtai Metal Roof Solar Mounting System is designed to fit most metal roof profiles with minimal on-site work. It includes two main system options: the Base & Rail System and the Mini Rail. Both are made from AL6006-T6 aluminum for superior corrosion resistance, making them suitable for solar panel mounts for metal roof and corrugated metal roof solar mount applications. The system supports both parallel and incline installation layouts, adapting to different project requirements.

System Options

The Yingtai Metal Roof Solar Mounting System offers two main system categories to suit different project needs and budgets.

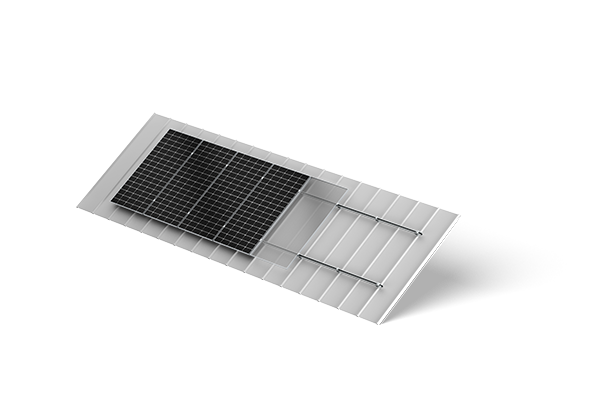

Base & Rail System

The Base & Rail System is a versatile mounting solution that matches various tile profiles and fits most metal roofs. It is ideal for metal roof solar mounts where a robust rail-based structure is preferred. Made from AL6006-T6 for superior corrosion resistance, it is suitable for solar panel mounts for metal roof and corrugated metal roof solar mount applications. Pre-assembled parts reduce labor costs, and it is also compatible with shingle roof solar mount.

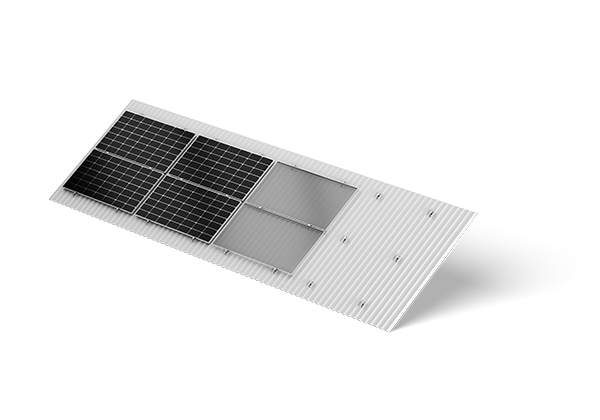

Mini Rail
The Mini Rail is a cost-effective mounting solution that saves rail materials and reduces project costs, especially for metal roof solar mounts. Made from AL6006-T6 for excellent corrosion resistance, it is reliable for solar panel mounts for metal roof and corrugated metal roof solar mount. Pre-assembled parts save on labor costs, and it is also suitable for shingle roof solar mount.

System Comparison

Base & Rail System
Structure: Rail-based mounting structure
Best for: Projects requiring robust rail support
Material: AL6006-T6
Cost: Moderate
Installation: Pre-assembled parts reduce labor costs
Compatibility: Trapezoidal, Standing Seam, Kliplok, shingle roof

Mini Rail
Structure: Compact mini rail mounting
Best for: Projects requiring cost-effective mounting
Material: AL6006-T6
Cost: Cost-effective, saves rail materials
Installation: Pre-assembled parts save on labor costs
Compatibility: Trapezoidal, Standing Seam, Kliplok, shingle roof

Compatible Roof Profiles

Trapezoidal
Trapezoidal metal roofs feature raised ribs that provide strong fixing points. The Yingtai metal roof solar mount is designed to clamp securely onto these ribs without penetrating the roof sheet, ensuring both waterproofing and structural reliability.

Standing Seam
Standing seam metal roofs have raised vertical seams. The Yingtai metal roof solar mounting system uses non-penetrating clamps that attach directly to the seam, preserving the roof integrity and avoiding leaks. This makes it ideal for commercial and industrial standing seam metal roof solar projects.

Kliplok
Kliplok roofs feature a concealed fixing profile. The Yingtai metal roof solar mount is designed to match Kliplok profiles, providing a secure and durable connection for solar panel mounts for metal roof applications.

Installation Options

Parallel
Incline

Material and Durability

Material: AL6006-T6 aluminum
Corrosion Resistance: Superior
Suitable for: Solar panel mounts for metal roof, corrugated metal roof solar mount, shingle roof solar mount
Durability: Long-term performance in outdoor conditions

Key Features

Versatile: matches various tile profiles, fitting most metal roofs, ideal for metal roof solar mounts.
Durable: made from AL6006-T6 for superior corrosion resistance, suitable for solar panel mounts for metal roof and corrugated metal roof solar mount.
Easy to Install: pre-assembled parts reduce labor costs, also compatible with shingle roof solar mount.
Cost-Effective: Mini Rail saves rail materials and reduces project costs.
Non-Penetrating: designed to preserve roof integrity and avoid leaks.

Applications

Residential metal roof solar projects
Commercial metal roof solar projects
Industrial metal roof solar projects
Corrugated metal roof solar mount applications
Shingle roof solar mount applications
Parallel and incline metal roof solar installations

Full Product Portfolio

Yingtai offers a complete range of solar mounting solutions for various applications:

Product Series	Application
Fishery PV	Fishery and aquaculture solar projects
BIPV	Building-integrated photovoltaics
Balcony	Balcony solar mounting
SnapFit	Snap-fit solar mounting solution
Ground Mount	Ground-mounted solar projects
Carport	Solar carport structures
Tile Roof	Tile roof solar mounting
Vertical Ground Mount	Vertical ground-mounted solar projects
Flat Roof	Flat roof solar mounting
Agri-PV	Agricultural photovoltaics
Metal Roof	Metal roof solar mounting

Why Choose Yingtai Metal Roof Solar Mounting System？

Yingtai Metal Roof Solar Mounting System provides a cost-effective, durable, and easy-to-install solution for metal roof solar projects. With compatibility across Kliplok, trapezoidal, and standing seam profiles, pre-assembled parts, and corrosion-resistant AL6006-T6 construction, it reduces labor costs and project timelines. The system offers two main options, Base & Rail System and Mini Rail, to suit different project needs and budgets. As part of Yingtai's full PV mounting portfolio, it delivers reliable performance for residential and commercial metal roof installations.
