Flat Roof Solar Mounting Solution

Product Overview

Yingtai Flat Roof Solar Mounting System is a complete solution for flat roof solar installations. The system is engineered to optimize sunlight exposure through adjustable tilt angles while protecting the roof membrane with non-penetrating designs. Available in three system configurations, it adapts to different roof types, project requirements, and budget levels. Whether you need a ballasted mount for a concrete roof, an adjustable tilt structure for maximum energy yield, or a TPO-sealed solution for synthetic membrane roofs, the Yingtai Flat Roof Solar Mounting System delivers reliable, durable, and easy-to-install performance.

System Options

Yingtai Flat Roof Solar Mounting System offers three main system categories under one product family, allowing you to choose the best fit for your project needs and roof conditions.

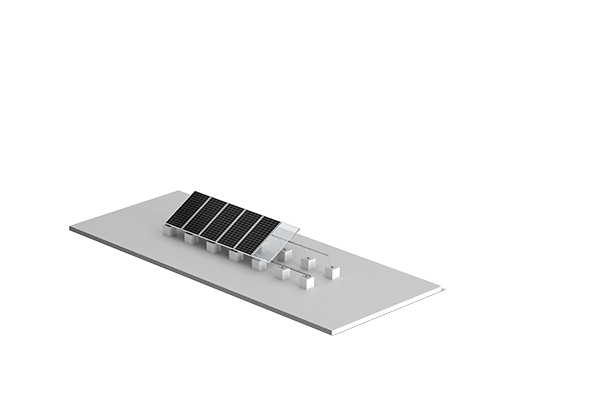

Ballast System

The Ballast System is a non-penetrating mounting solution that secures the solar array using weighted blocks instead of drilling into the roof. This design protects the roof membrane and structural integrity, effectively preventing potential leaks and avoiding costly repairs. The angled design optimizes sunlight exposure, and adjustable angles adapt to various sunlight angle requirements. Highly pre-assembled and lightweight concrete components simplify installation and reduce labor costs. Ballasted systems are ideal for flat roofs where penetrating the surface is either not possible or not desirable, provided the structure can support the additional ballast weight.

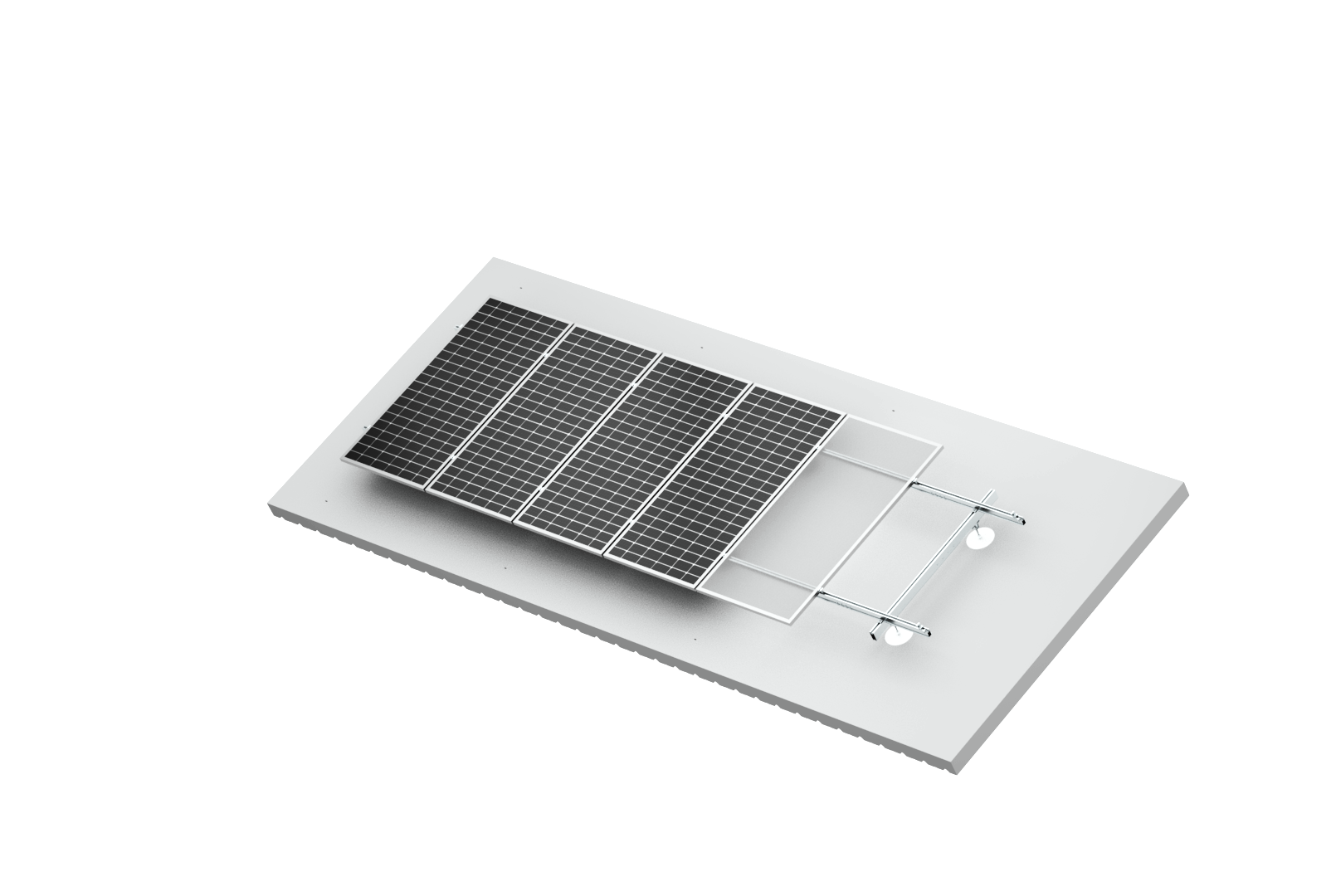

Adjustable Tilt System

The Adjustable Tilt System is designed to maximize energy production by allowing the module tilt angle to be adjusted to the optimal position for sunlight capture. This is particularly important on flat roofs where panels installed parallel to the roof would not achieve optimal performance. The system accommodates various sunlight angles, making it suitable for different geographic locations and seasonal variations. Highly pre-assembled parts save on labor costs and simplify on-site installation.

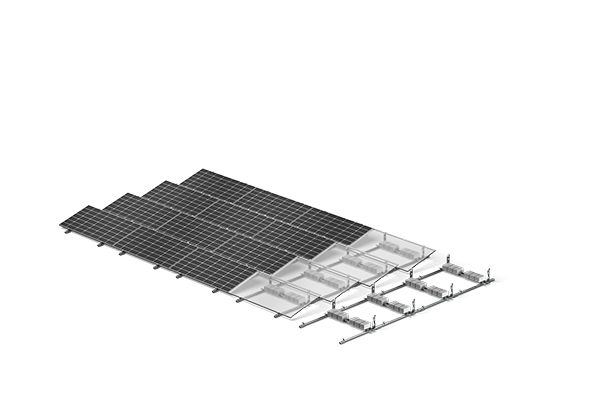

TPO System
The TPO System is specifically engineered for flat roofs with thermoplastic polyolefin (TPO) waterproofing membranes. TPO support seals ensure no leaks, providing ultimate waterproofing protection. Made from AL6006-T6 for excellent corrosion resistance, the system is durable and reliable for long-term outdoor exposure. Highly pre-assembled parts save on labor costs and simplify installation. The TPO System allows photovoltaic modules to be attached to the synthetic waterproofing surface without the need to drill any holes into it, preserving the integrity of the roof membrane.

System Comparison

Item	Ballast System	Adjustable Tilt System	TPO System
Roof Protection	Non-penetrating, no nails or drilling	Non-penetrating or ballasted	TPO support seals ensure no leaks
Angle Adjustability	Adjustable angles	Adjustable angles	Fixed or adjustable
Material	Lightweight concrete ballast, aluminum rails	AL6006-T6 aluminum	AL6006-T6 aluminum
Corrosion Resistance	Superior	Superior	Excellent
Installation	Highly pre-assembled, lightweight concrete	Highly pre-assembled parts	Highly pre-assembled parts
Best For	Roofs where penetration is not allowed	Projects requiring optimal tilt angle	TPO membrane flat roofs
Roof Membrane Compatibility	Concrete, gravel, EPDM, TPO, PVC	Concrete, gravel, EPDM, TPO, PVC	TPO, PVC, EPDM

Key Features

Roof Protection: The Ballast System does not damage the roof with nails, preserving the waterproofing membrane and structural integrity.
High Efficiency: The angled design optimizes sunlight exposure, boosting energy yield compared to flat-laid panels.
Adjustable Angles: The system adapts to various sunlight angle requirements, suitable for different latitudes and seasonal variations.
Easy Installation: Highly pre-assembled and lightweight components reduce on-site labor and simplify installation.
Ultimate Waterproofing: TPO support seals ensure no leaks on synthetic membrane roofs.
Durable: Made from AL6006-T6 for excellent corrosion resistance, ensuring long-term reliability.
Non-Penetrating: No drilling or roof penetration required, preserving roof warranties and avoiding leak risks.
Corrosion-Resistant Materials: Aluminum alloy construction with anodized surface treatment for long-term outdoor performance.

Material and Durability

Material: AL6006-T6 aluminum alloy
Surface Treatment: Anodized for enhanced corrosion resistance
Corrosion Resistance: Excellent, suitable for long-term outdoor exposure
Ballast Material: Lightweight pre-cast concrete blocks
Durability: Maintains structural integrity under wind and weather loads
Wind Load Design: Engineered to withstand wind uplift forces based on ASCE 7-10 standards and local building codes
Roof Load Capacity: Ballast systems require the roof structure to support the additional weight of the mounting system and ballast blocks

Installation Advantages

Non-Penetrating Design: No drilling or roof penetration, preserving the waterproofing membrane and avoiding leak risks.
Pre-Assembled Components: Highly pre-assembled parts reduce on-site labor costs and simplify installation.
Lightweight Ballast: Lightweight concrete blocks are easy to handle and position on the roof.
Flexible Layout: The system supports various array configurations, including portrait and landscape module orientations.
Quick Deployment: Simplified assembly process reduces installation time and project timelines.
Roof-Friendly: Rubber protective pads between the support and roof surface prevent abrasion and protect the membrane.

Applications

Commercial flat roof solar projects
Industrial flat roof solar projects
Residential flat roof solar projects
Concrete flat roof solar mounting
TPO membrane flat roof solar mounting
EPDM membrane flat roof solar mounting
Gravel-covered flat roof solar mounting
Ballasted non-penetrating solar installations
Adjustable tilt solar installations for optimal energy yield

Why Trust Yingtai?

Yingtai Flat Roof Solar Mounting System provides a versatile, durable, and easy-to-install solution for flat roof solar projects. With three system options – Ballast System, Adjustable Tilt System, and TPO System – it adapts to different roof membranes, project requirements, and budget levels. The non-penetrating design preserves roof integrity and avoids leak risks, while adjustable tilt angles maximize sunlight capture and energy yield. Made from corrosion-resistant AL6006-T6 aluminum and featuring highly pre-assembled components, the system reduces labor costs and project timelines. As part of Yingtai's full PV mounting portfolio, it delivers reliable performance for commercial, industrial, and residential flat roof installations.
