Building-Integrated Photovoltaics Roof System

Building-Integrated Photovoltaics Roof System

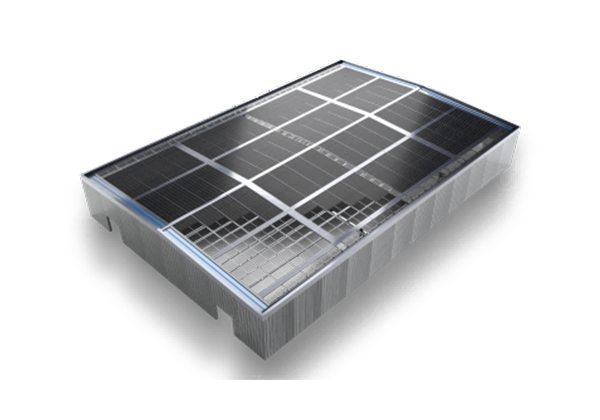

Building-Integrated Photovoltaics Roof System seamlessly integrates solar power generation with architectural design. Featuring a patented all-aluminum structure, it enables minimalist installation in just three steps, and is engineered to meet building regulations with wind-resistant, waterproof, and low-maintenance performance.

Product Introdcution

Building-Integrated Photovoltaics Roof System is a roof-integrated photovoltaic solution designed for commercial and industrial buildings. Unlike conventional rooftop solar arrays that are mounted on top of an existing roof, this system replaces the traditional roof covering itself, serving simultaneously as the building envelope and the power generation source.

The system is built around a patented all-aluminum structural design, combining architectural aesthetics with structural integrity. It is engineered to comply with building regulations, delivering wind resistance, 100% roof waterproofing, and simplified maintenance across the entire system lifecycle.

All-Aluminum Material and Architectural Aesthetics

The entire structural system is constructed from high-performance aluminum alloy, selected for architectural aesthetics and long-term durability.
• Excellent strength-to-weight ratio
• Superior corrosion resistance
• Full recyclability at end of life
• Reduced dead load on the building
• Suitable for roofs with limited load-bearing capacity
• Simplified handling during installation and maintenance

Ultimate Waterproofing

Waterproofing is the most critical performance requirement for any roof-integrated photovoltaic system, as the roof serves as the primary weather barrier for the building. Building-Integrated Photovoltaics Roof System employs a patented waterproofing design that achieves 100% roof waterproofing.
• Waterproof components integrated into the structural profile itself
• No secondary waterproofing layer required
• Eliminates water ingress at mounting penetrations
• Drain outward, seal inward waterproofing principle
• Multiple sealing elements for wind-driven rain conditions

Simplified Installation and Worry-Free Maintenance

The system is designed for minimalist installation in just three steps, significantly reducing on-site labor time and project cost. The pre-engineered, modular components arrive ready for assembly, with no complex on-site fabrication or customization required.
Installation process:
• Position the module
• Clamp it into place
• Secure the connection

Maintenance is equally simplified:
• All-aluminum construction resists corrosion and degradation
• No exposed mounting rails or penetrations to inspect and reseal
• Lower frequency and complexity of service interventions
• Long-term structural and waterproofing performance

Engineered to Meet Building Regulations

Building-Integrated Photovoltaics Roof System is engineered to satisfy building regulatory requirements for roof coverings and photovoltaic installations. The system addresses the primary performance criteria for building-integrated photovoltaics:
• Wind resistance: designed to withstand wind uplift and pressure loads in accordance with applicable building codes
• Waterproofing: achieves 100% roof waterproofing to protect the building envelope
• Fire performance: materials selected to meet relevant fire classification requirements for roof coverings
• Structural integrity: engineered to support snow loads, live loads, and wind loads as required by building regulations

Technical Support Provided

Technical support is provided for complex project cases, ensuring the system can be adapted to a wide range of building types, roof geometries, and project-specific requirements without compromising performance or compliance.
• Design coordination
• Structural verification
• Installation guidance
