We offer you this Smart Telescopic Rod Aluminum Profiles, a high precision profile designed for mechanical motion. We use a high quality 6063-T5 aluminum alloy with a precision die extrusion to ensure a perfect clearance between large and small tubes. As a professional supplier, Ying Tai offers comprehensive services. If you need more information, please feel free to contact us at any time.

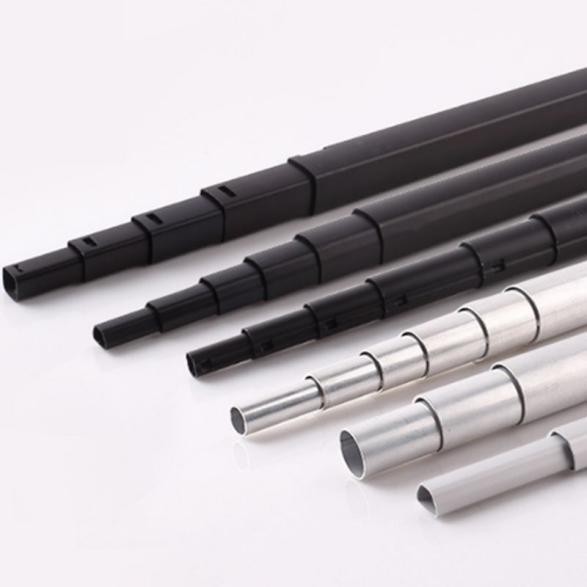

We offer you this product launched by Yingtai Factory. It is a rather interesting item - this Smart Telescopic Rod Aluminum Profiles. It is a kind of aluminum tube that can be extended one section after another like an antenna. But this thing is not just an ordinary clothesline. It is an extension component for those smart devices, vacuum cleaners, camera brackets, and even some high-tech instruments. We produce this to solve the problem that those devices need to adjust their length while remaining lightweight and aesthetically pleasing.
This Smart telescopic rod aluminum profiles structure may seem simple on the surface, but there is actually a sophisticated design inside. It consists of several tubes that are nested one inside the other, layer upon layer. To prevent surface damage during extension, we have left very small gaps at the contact points, with extremely high precision. We have also calculated the thickness of the tube walls to ensure they are stiff enough when pulled out, but not so thick that they become too bulky when retracted. Some models we also design a card slot or positioning hole at the interface, so that you can pull to the length you want to get stuck, will not slide back.
Product Name: Aluminum smart telescopic rod extrusions
• Material Grade: 6063-T5
• Cross-sectional Shape: Circular / Rectangular / Special-shaped
• Common Specifications: Outer tube diameter 25mm - 80mm, Inner tube diameter suitable for various applications
• Wall Thickness: 1.2mm - 3.0mm
• Fit Tolerance: 0.1mm - 0.3mm (customized according to gap requirements)
• Surface Treatment: Anodizing / Sandblasting / Painting
The most distinctive feature of this Aluminum profiles use in smart telescopic rod is its strong "intelligence" and versatility. We can do a lot with the tubes, such as creating a long slot on the tube to facilitate wiring, hiding the motor wires inside the rod, and making it look very neat from the outside. Or we can laser-cut holes on the tube wall for installing limit switches. Another feature is that it is very quiet, which is extremely important for intelligent devices. No one wants the device to make strange noises whenever it moves.
When using this product in daily life, be careful not to let sand or small stones enter the tube. Doing so may cause scratches on the inner wall when pulling it out. Just add some lubricating oil. If it is for outdoor use, after a year or two, you can pull it out, wipe off the dust with a soft cloth to keep it clean and smooth. Don't use sharp objects to forcefully pry the interface, as it may deform. As long as it is used normally, this aluminum material will not deteriorate for ten or eight years, and it is a very convenient product.
