If you are looking for a standardized aluminum profile for your production line, large-scale automated equipment or factory material racks that can provide extremely strong load-bearing capacity while also allowing for flexible assembly? The 4080 Assembly Lines Aluminum Profiles brought to you by Yingtai is your best choice.
This 4080 Assembly Lines Aluminum Profiles is the main material prepared by our Yingtai Company specifically for building assembly lines, workbenches and the framework of automated equipment. As a professional supplier, "4080" refers to its cross-section being 40 millimeters wide and 80 millimeters high, which is a large-sized profile with strong load-bearing capacity. Many friends who are engaged in factory automation or non-standard equipment prefer to use this specification because it is both sturdy and easy to install. We have been engaged in export business for many years and know that foreign customers have particularly strict requirements for dimensional accuracy and material purity. Therefore, during production, we strictly control the tolerances to ensure that every piece of material you receive can fit together perfectly without the embarrassment of not being able to fit in.
Specification
|
Product Name |
4080 Assembly Lines Aluminum Profiles |
|
Cross-Section Size |
40mm x 80mm |
|
Material |
6063-T5 |
|
Surface Treatment |

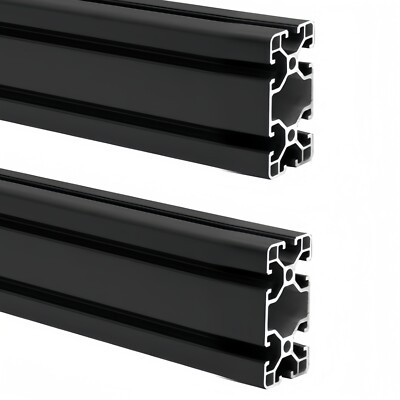

Anodizing (Silver White / Champagne / Black) |
|
Length |
1m - 6m (Common) / Custom Length |
|
Tolerance |
±0.1mm |

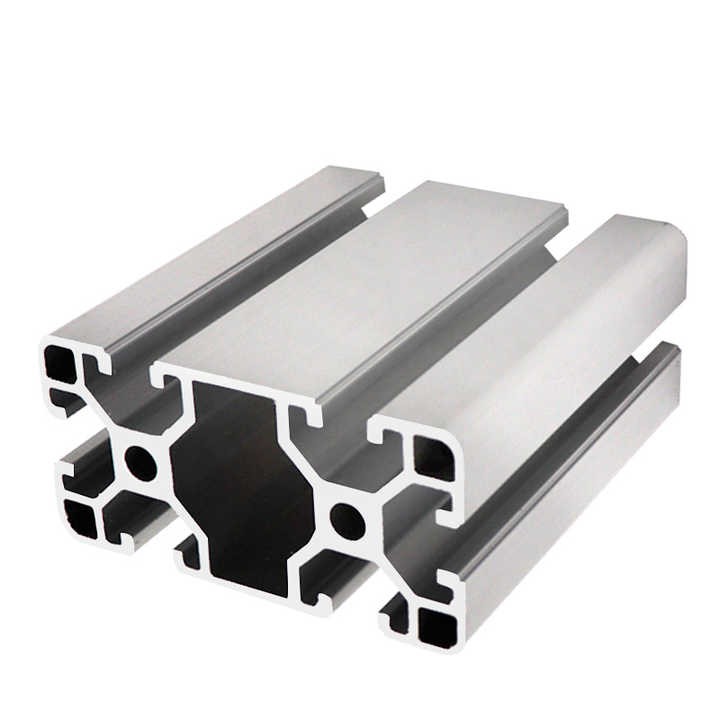

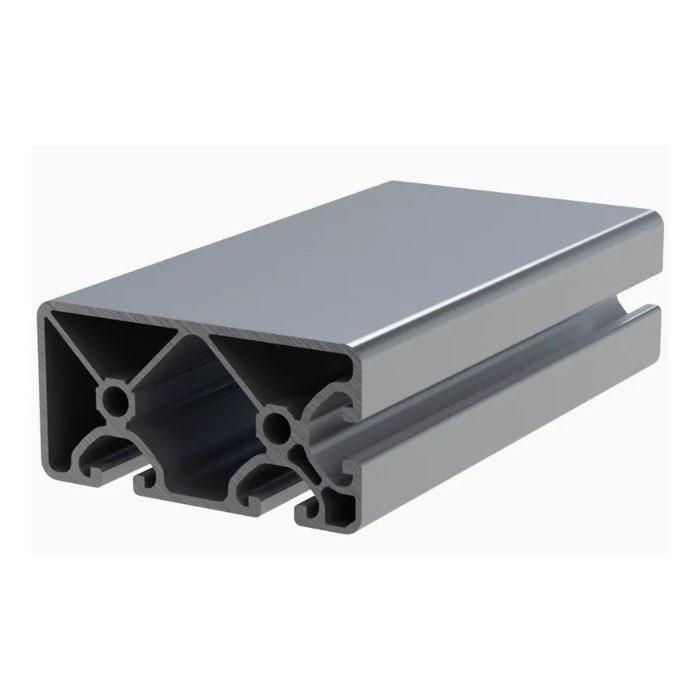

The four walls of this 4080 Assembly Lines Aluminum Profiles are not flat but have a structure with reinforcing ribs, which greatly enhances its bending resistance without adding too much weight. The hollow part in the middle not only reduces the weight, making it convenient for you to move and process, but also makes it easy to run wires, air pipes or pipelines for pneumatic components in the future. The corners of the four sections have all undergone arc transitions. This is not for aesthetic purposes but to prevent stress concentration and make the profiles less prone to breakage.
The load-bearing capacity of this 4080 Assembly Lines Aluminum Profiles is first-class. Because of its large moment of inertia in cross-section, if you use it as a long-span crossbeam and hang some heavy objects on it, it won't bend very severely. Its straightness is extremely high. Whether laid on the ground or installed on equipment, it won't twist around. The material is 6063-T5 aluminum alloy, which not only ensures strength but also has excellent toughness. Even when used in low-temperature environments, it is not as brittle as steel and is less likely to crack upon impact. Moreover, it has excellent corrosion resistance. Even if common cutting fluid or oil stains in the workshop splash on it, they can be washed off easily and it won't rust.
The greatest advantage of our product among its peers is its "low internal stress". Many manufacturers' profiles deform after sawing because the internal stress is not properly eliminated. Our profiles, due to adequate aging treatment, remain flat on the end face after cutting. This is extremely important for making precision equipment. Another advantage is that our surface quality is extremely high, with no bubbles or black lines at all. If you are making appearance parts, you can use them directly without the need for further painting. In addition, we have a sufficient inventory. Regular specifications are always in stock, so there's no need to wait for production scheduling. Orders can be dispatched immediately.
