Smart Multi-Slew Drive Independent Solar Tracking System

Product Overview

Yingtai Smart Multi-Slew Drive Independent Solar Tracking System is designed for utility-scale solar projects. It supports a maximum system length of 80 m, wind resistance of 60 m/s (per ASCE 7-10), tracking angle range up to ±60°, and N-S slope tolerance options. The system integrates structural, drive, control, terrain adaptability, and weather resilience advantages into one optimized solution.

Core Advantages

Rotary Reducer
Strong performance, durable and long-lasting.

Transmission Shaft
Synchronous drive.

Protective Stow
More secure at 5° to withstand strong winds.

Innovative Electronic Control System
Using algorithms and real-time data to intelligently locate in the safest and most efficient location.

Compatible with Large Panels
Compatible with all new large format modules.

Resilient to Strong Winds

Patented multi-slew drive design distributes forces across multiple points, ensures whole system stability. Certified by CPP WIND, engineered to withstand strong winds.
Individually controlling each string to adapt to any wind load, gathering terrain slope data, identifying wind angles, and employing a four-tier protection mechanism. This ensures autonomous adoption of the safest position in strong winds.

Adaptable to Diverse Terrains

North-south maximum slope 20%, linked or unlinked options are available, optimizing capacity even in constrained conditions.
Multiple foundation options, adaptable to any soil while minimizing the need for earthmoving.
Each row is independently controlled, with an advanced backtracking algorithm. By dynamically responding to the angles and slopes of the terrain, it significantly enhances overall energy yield.

Coping with Severe Weather

Designed based on wind tunnel test data, ensuring stability in high winds and heavy snowfall.
Equipped with advanced sensors and machine learning, the controllers monitor facilities, detect faults, and predict threats.
With wireless communication and backup battery, functionality is maintained during power grid outages.
Automatic snow response uses ultrasonic sensors to detect snow accumulation, adjusting the tracker for self-cleaning and preventing module obstruction.

Smart Tracking Solution

Efficient, stable and secure.
Equipped with advanced software and hardware.
Produce, predict and protect all the time.

Boost Power Generation

Smart Tracking Algorithm
Taking terrain variance into consideration.
Based on 3D modeling and efficient optimization algorithm.
Minimizing shading caused by irregular terrain and lift power generation.
Considering direct, diffuse and reflected irradiance.
Adapting to bifacial module and various weather conditions.

Mitigate Extreme Weather Risks

The controller is equipped with advanced sensors and machine learning capabilities to monitor the entire facility, detect faults, and predict structural threats, ensuring comprehensive protection strategies during severe weather conditions:
Wind Stow
Snow Stow
Flood Stow
Hail Stow

Remote or Onsite Maintenance

Utilizing IoT for fault analysis and diagnostics, enabling remote commission and maintenance.
The TCU features Bluetooth for convenient on-site commission via a mobile app.
Equipped with an intuitive graphical user interface and MapView to help operators monitor the site in real-time.

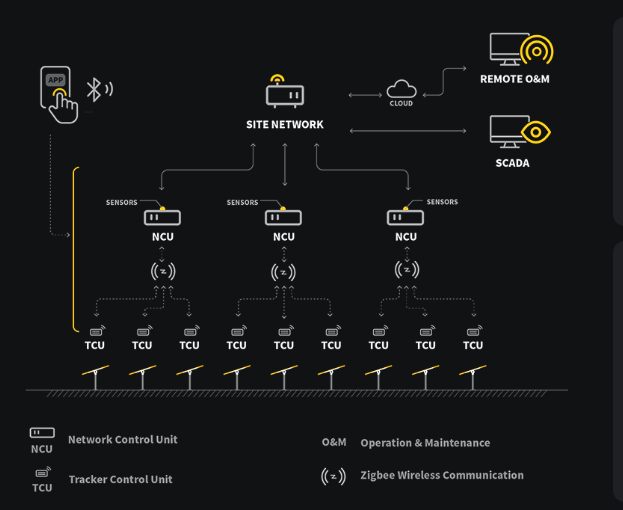

Intelligent Control System Architecture

Hardware Devices
Network Control Unit (NCU)
Tracker Control Unit (TCU)
Sensors

Software Applications

Remote O&M is used for remote monitoring, management and maintenance.
SCADA is used for local monitoring, management and maintenance.
Mobile App is used for easy commissioning and installation via Bluetooth.

We Care About Data Security

All databases and servers are hosted in a secure, advanced cloud computing environment.
We adhere strictly to the highest privacy protocols and data protection standards, ensuring security and confidentiality of customer data.
This secure architecture guarantees the integrity and protection of data during transmission and storage.

Technical Parameters

Tracking range: 120°
Slewing reducers: 2–4
Wind stow angle: 5°
N-S slope tolerance: 20%
Max. System Length: 80 m
Wind Resistance: 60 m/s (per ASCE 7-10)
Tracking Angle Range: up to ±60°
Max. N-S Slope Tolerance: 15% (8.5°)

Comprehensive Lifecycle Services

Financing Service
Provides a full set of support installation materials and technical documents.

Pull-out Test
POT test provides the complete POT test process.

Project Management
Eight service centers in the world provide 7*24 hours fast response to global customer demands.

Installation and Commissioning Training
A variety of technical consulting and training.

Remote, Onsite or Hybrid Maintenance
Monitor the safety of power plant operation anytime and anywhere.

Extended Warranty & Spare Parts
Cycle warranty, lifetime after sales.
