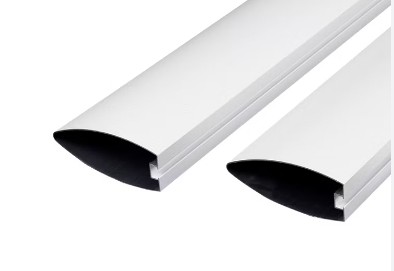

As a professional manufacturer in China, the Aluminum Bullet Shaped Ceiling Profiles we designed are long aluminum alloy strips with a cross-section like half a bullet head. When you install them one by one on the ceiling, they can form continuous and three-dimensional wavy curves. This design can make the entire ceiling no longer so monotonous and full of flowing beauty. If you need any assistance, please feel free to inquire.

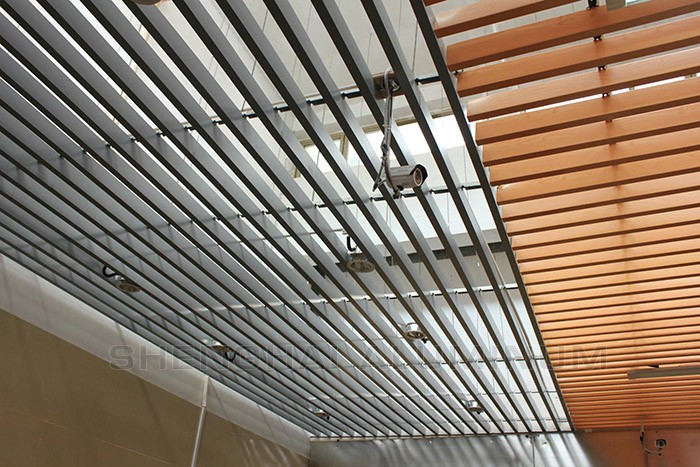

As a professional supplier, Yingtai offers you this Aluminum Bullet Shaped Ceiling Profiles, which is an "aluminum alloy strip ceiling with a cross-section in the shape of a bullet head". Each of its profiles has a smooth top, like an upside-down bullet. They are installed side by side on the ceiling, creating a unique and rhythmic three-dimensional decorative effect. Its core task is to break the planar limitations of the ceiling and shape the space with three-dimensional lines.

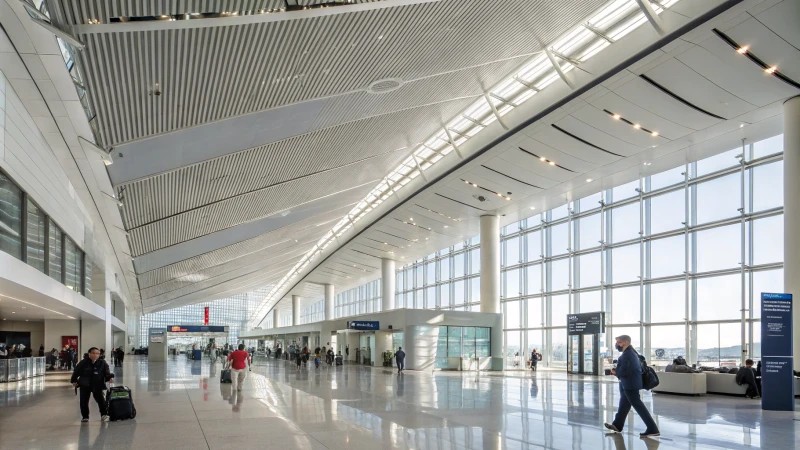

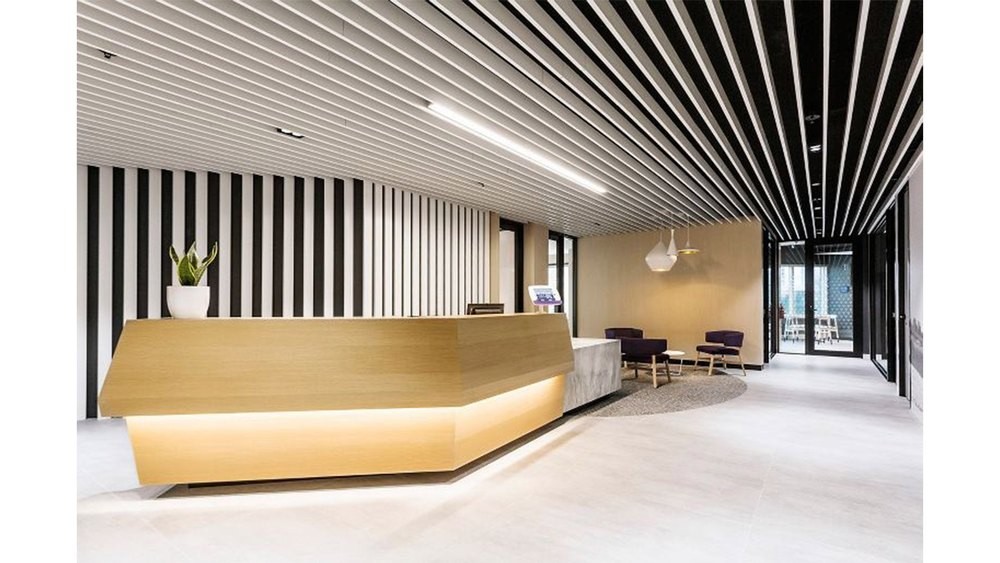

This Extruded Bullet-Shaped Baffle Ceiling Profile is the "finishing touch" for all Spaces that pursue avant-garde, individuality and design sense. It is highly suitable for use in lobbies, front desks, art galleries, exhibition halls and other places that require a strong visual impact. It is also very suitable for use in modern-style offices, brand stores, cinemas, bars and other commercial Spaces to create a unique commercial atmosphere. In the living rooms or corridors of some high-end residences, it can also achieve unexpected decorative effects.

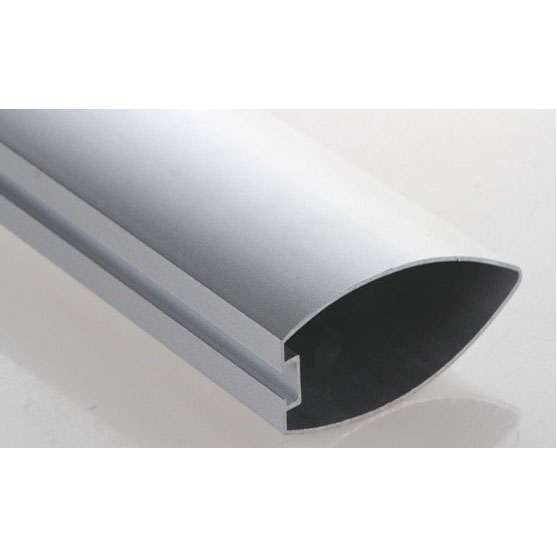

The structure of this Aluminum Bullet Shaped Profile is "designed to create a three-dimensional effect and facilitate installation". The cross-section of the profile is the core, the top is semi-circular or bullet-shaped, and the bottom is a flat installation base. This base is usually designed with slots or installation holes, which can be conveniently fixed on a dedicated keel system. There will be a certain gap left between the profiles, which is not only part of the design but also facilitates installation and fine-tuning.
|
Product Name |
Aluminum Baffle Ceiling Profile |
|
Material |
6063-T5 Aluminum Alloy |
|
Standard Width |
50mm - 200mm (Customizable) |
|
Standard Height |
25mm - 80mm (Customizable) |
|
Wall Thickness |
0.8mm - 1.5mm |
|
Standard Length |
3.0m, 4.0m, 6.0m (Cut to length available) |
|
Surface Finish |
Anodized / Powder Coated / Heat Transfer Wood Grain |
For this kind of decorative profile with a curved surface that is prone to bumps, our packaging standard is "curved surface protection to prevent indentations". Our Yingtai Company will first put a shaped foam protective sleeve on the arc-shaped top of each profile. Then, we will separate them with pearl cotton, stack them horizontally in a thickened wooden box, and add support plates at the top and bottom to ensure that they will not deform due to heavy pressure during transportation.
■ Aerodynamic Bullet Design
Streamlined, bullet-shaped aluminum profile enhances visual appeal while optimizing airflow and acoustic performance. Smooth curves reduce air resistance and noise, ideal for modern architectural aesthetics.
■ High-Strength Aluminum Material
Made from lightweight yet durable 1000/3000-series aluminum alloy, resistant to corrosion, rust, and fire. Suitable for both indoor and outdoor environments (e.g., humid areas, coastal regions).
■ Modular & Easy Installation
Pre-engineered for quick assembly with concealed suspension systems (e.g., T-bars or hooks).

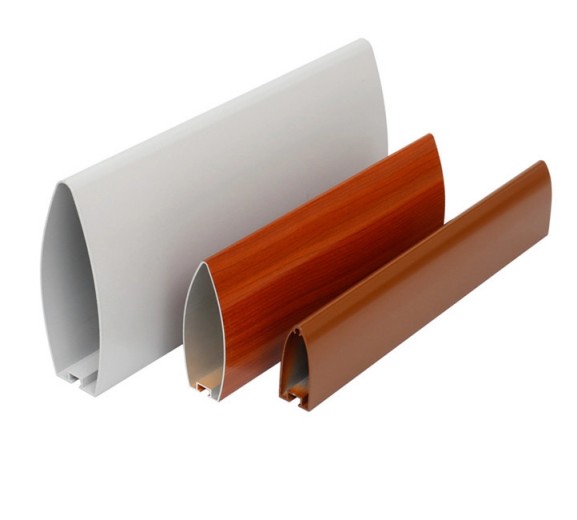

■ Customizable Finishes
Available in powder-coated, anodized, or wood-grain finishes to match any decoration, and Colors and sizes (width, length, curvature) can be tailored to project requirements.
■ Low Maintenance & Eco-Friendly
Non-porous surface resists dust and stains; easy to clean with minimal upkeep. 100% recyclable and complies with green building standards (LEED, BREEAM).
Fire Rating: Our Aluminum Bullet Shaped Profile meets ASTM E84 Class A/EN 13501-1 standards.Load Capacity: Aluminum bullet-shaped baffle ceiling supports integrated lighting (LED strips/spotlights) and ventilation systems.Sustainability: Reduces energy consumption through reflective surfaces and thermal insulation.
